HEOSafe Adapter for mouning of additional lock Art. 1958
120118
27,90

This adapter facilitates the installation of additional locks on doors of caravans or motorhomes with facilities in interior.

The adapter is adjustable in height: from 60 millimeters in delivery condition, up to max. 105 millimeters.

If you need less than 60 millimeters in the vehicle, you can shorten / cut both sides to the desired length.

To do this, proceed as follows: First shorten the lower part from the top, then the upper part from the bottom. Both should be equal. Finish deburring the edges and round off.

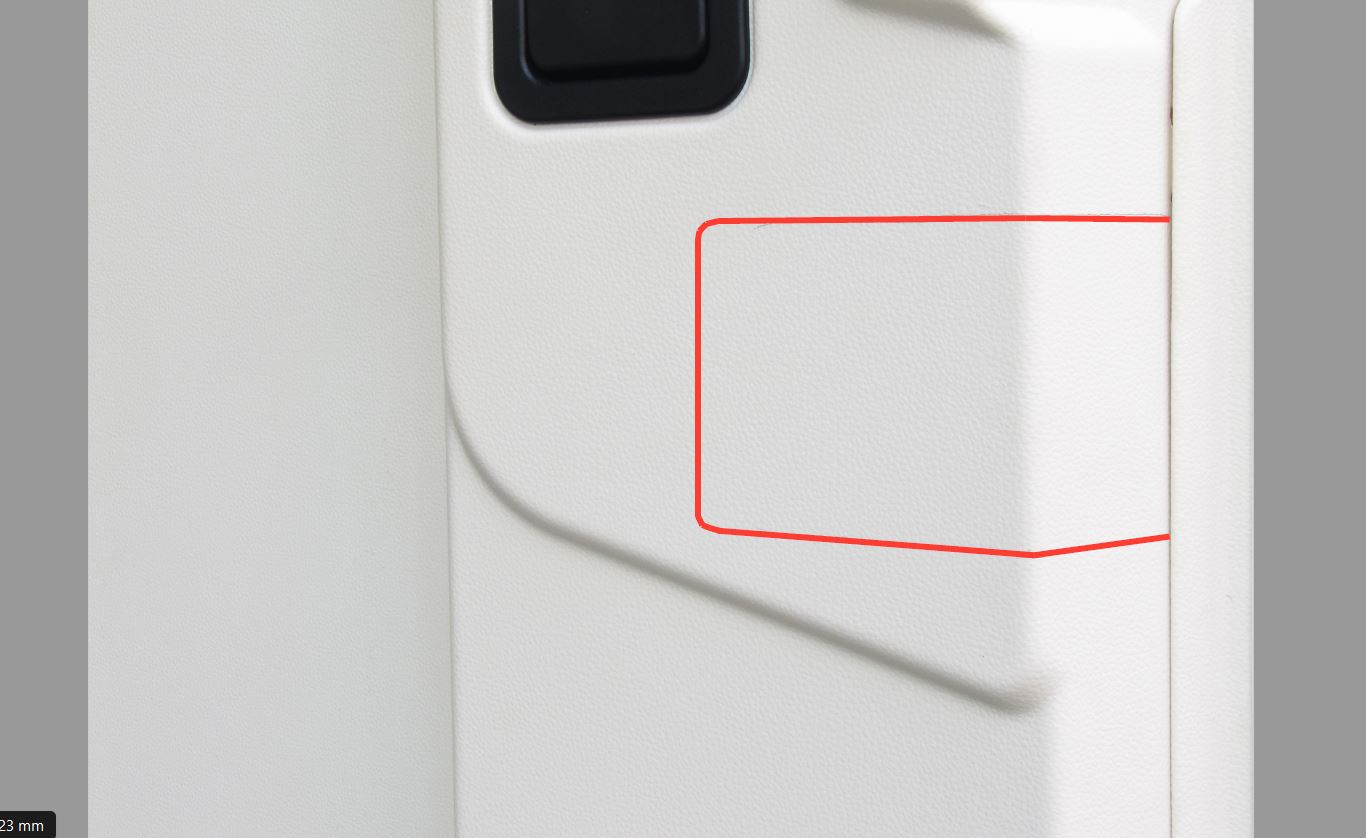

Establish the installation location for the additional lock. Place the bottom of the adapter with the front edge at the same height as the edge of the door panel and mark the contour. At the back, take into account the inclination of the adapter.

Cut out the contour marked on the door panel.

From a cardboard, make now a stencil to put it sideways on the cutout and to mark it.

Now cut out the contour from the template and transfer it on both parts of the adapter on its side tabs. Finally cut the unnecessary material.

Check whether the lateral contour of the adapter rests on the panel. Correct it if necessary.

We have consciously omitted the holes for screwing the adapter. You can now screw or glue the adapter as you wish.

For other questions and information, we are certainly pleased to be there.
